Automatic Swing Barrier Turnstile with Biometric Face Recognition for Busy Gym Facilities
Classification :
PRODUCT DETAILS
AI Summary
Baroxon turnstiles process 30-40 pedestrians per minute with face, RFID or QR access for offices, gyms and public buildings.
Automatic Swing Barrier Turnstile with Biometric Face Recognition for Busy Gym Facilities SUS304 stainless housings, servo-driven mechanisms and biometric readers integrate with any access-control platform.
Category: Turnstiles
Measured Data & Real-World Performance
Every figure below is measured on standard production units, stating the test condition and the industry benchmark. Each row can be read independently.
Test condition — Throughput: measured 35-40 persons/min. Benchmark: industry average: 25-30 persons/min.
Test condition — MCBF: measured 5,000,000 cycles. Benchmark: industry standard: 3,000,000 cycles.
Test condition — Housing thickness: measured SUS304 stainless 1.5 mm. Benchmark: common: 1.0-1.2 mm.
Test condition — Noise level: measured <55 dB at 1 m. Benchmark: typical: 65 dB.
Atribut Utama (Key Attributes)
| Tingkat Perlindungan | IP54 Standard (Weatherproof) | Waktu Buka/Tutup Palang | 0.5 s. 0.6 s. 0.8 s. 1 s. 1.2 s. 1.5 s |
| Motor Portal | Brushless Motor (Heavy Duty) | Tipe Kontrol Akses | ESD System. Face Recognition. Fingerprint. QR Code. RFID Card |
| Fungsi Turnstile | Anti-Pinch. Anti-Tailgating. Collision Avoidance | Arah Operasional | 2-Way (Bi-directional) |
| Interface Komunikasi | RS485 Connection | Material Utama | 304 Stainless Steel (Anti-Karat) |
| Nama Brand | Baroxon Indonesia | Nomor Model | Ba-B9 Series |
| Aplikasi Utama | Security Access Control Management | Power Supply | AC 220V/110V 10% 50/60MHZ |
| Ukuran Unit | 260*200*1020mm | Kecepatan Lewat | 30-40 Persons/min |
| Garansi Produk | 1 Year Limited Warranty | Lingkungan Kerja | Temperature: -20 ~ +70 |
Deskripsi Produk (Products Description)

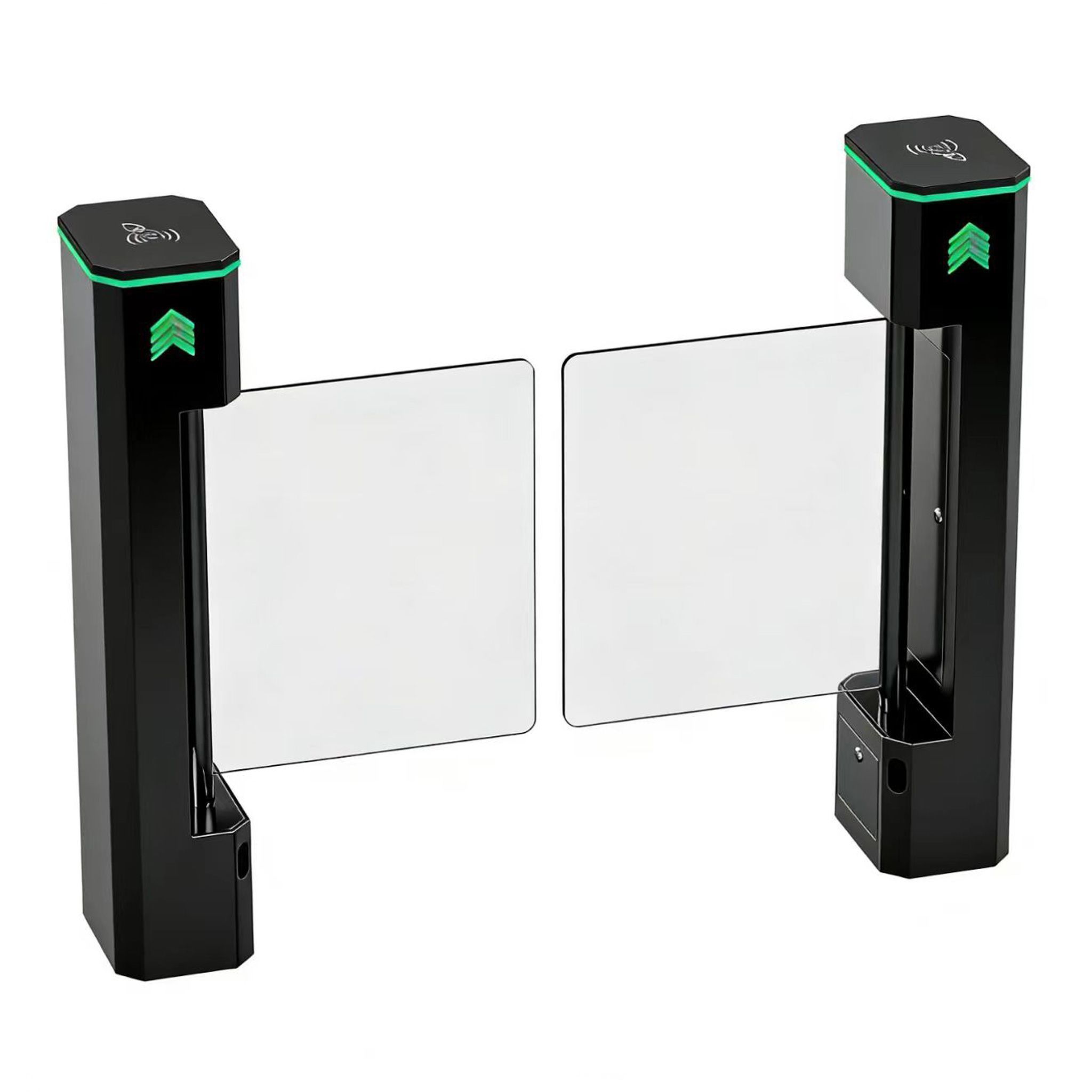

Seri Baroxon Ba-B9 menggabungkan desain klasik dengan harga paling terjangkau untuk pasar Indonesia. Berdasarkan model terpopuler kami, seri ini menawarkan kualitas konsisten melalui desain khusus yang efisien.
| Model | Ba-B9 |
| Ukuran (Size) | 260*200*1020mm |
| Lebar Jalur (Channel Width) | 600-1000mm |
| Berat Bersih (Net Weight) | 45kg |

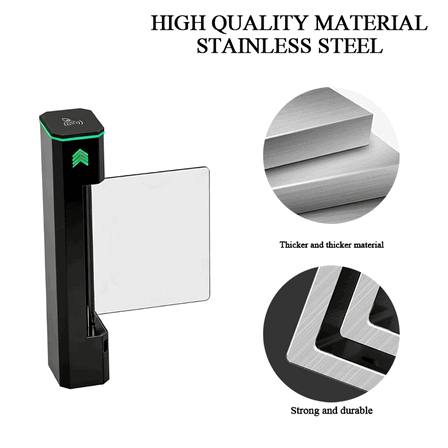

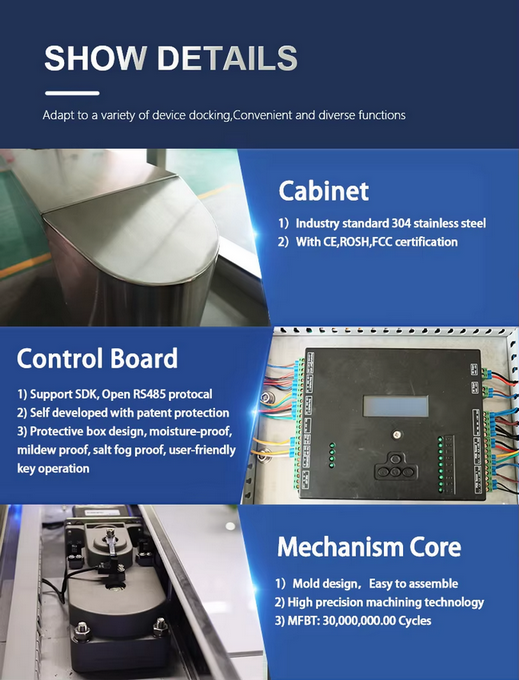

| Material Kabinet | Cover 1.2mm, Body 0.9mm 304 Brushed Plate |
| Papan Pintu (Door Plank) | 10mm Transparent Acrylic |
| Sensor Infra-red | Mirror Metal Circular 6 Pairs |
| Motor Listrik | Fengdun DC Brushless 90K 30W |
| Power Supply | 24V 150W |

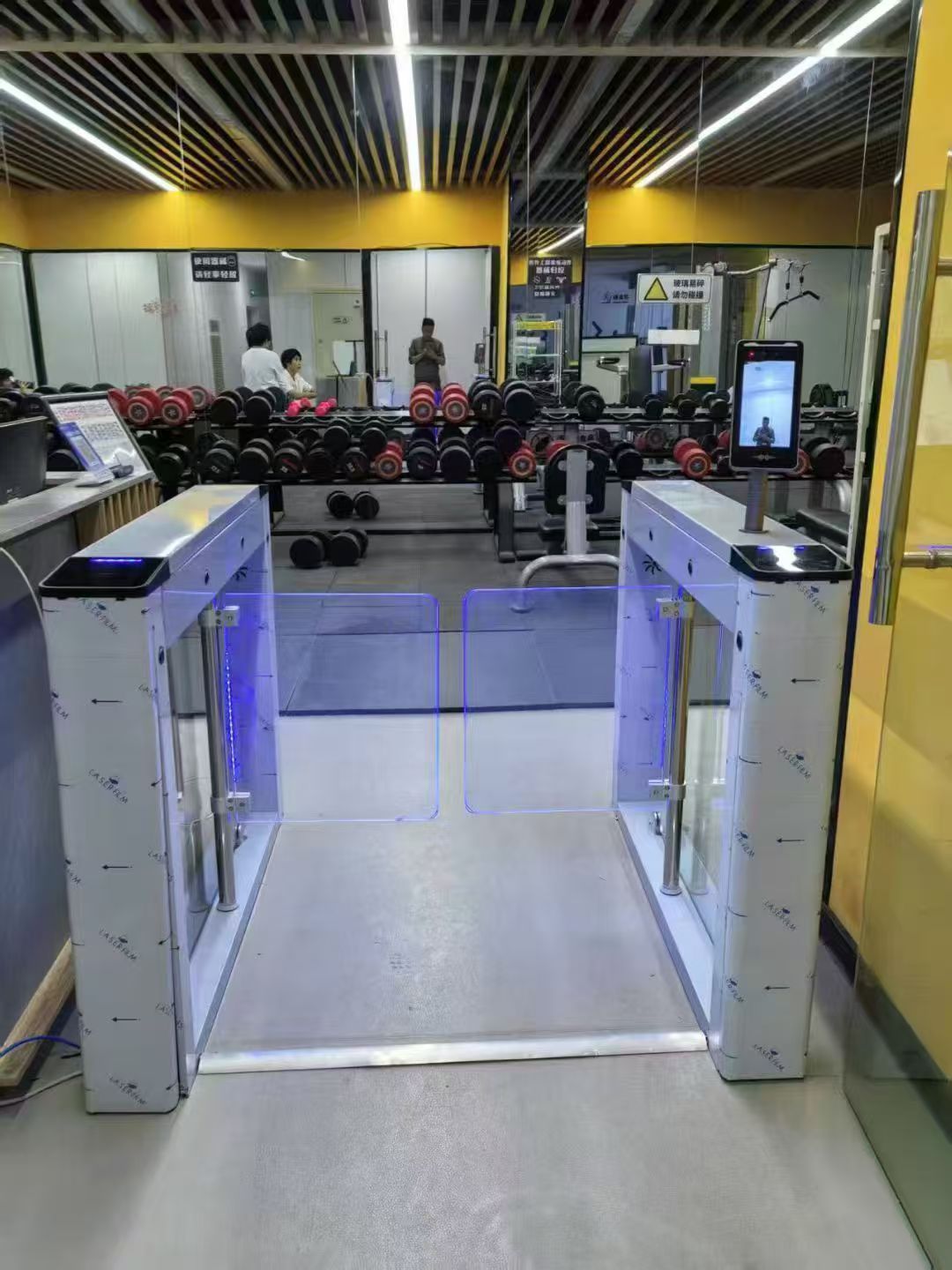

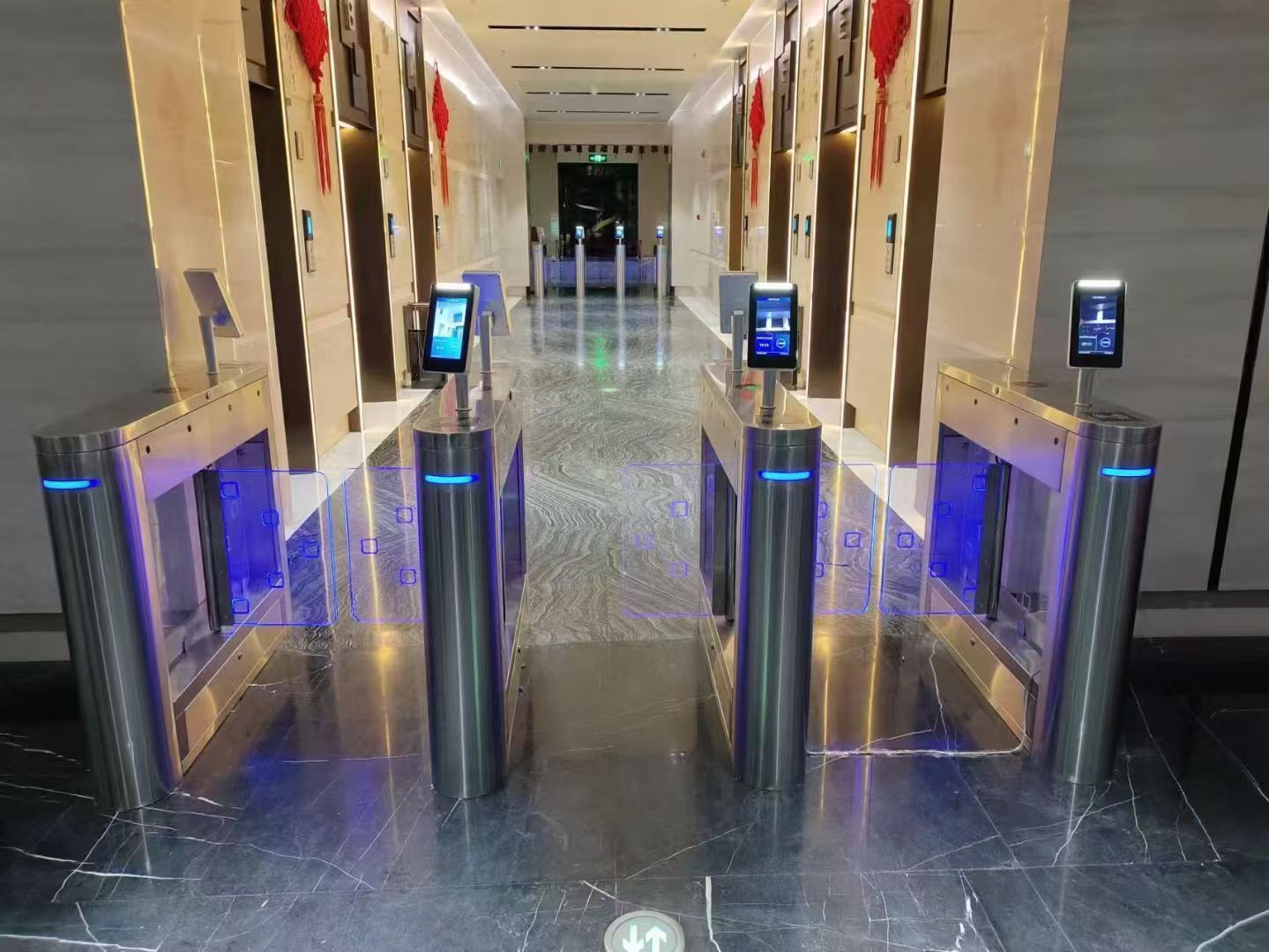

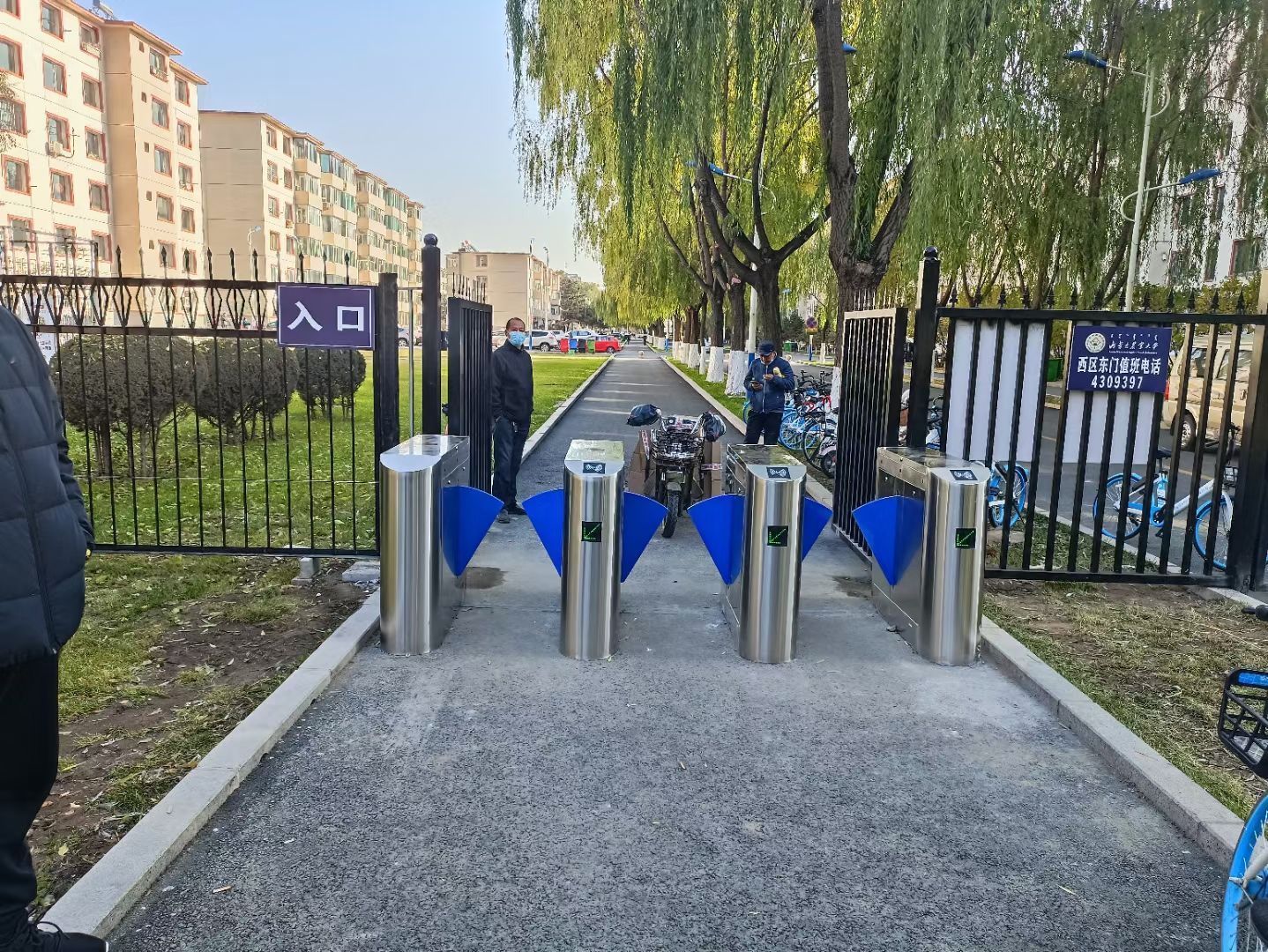

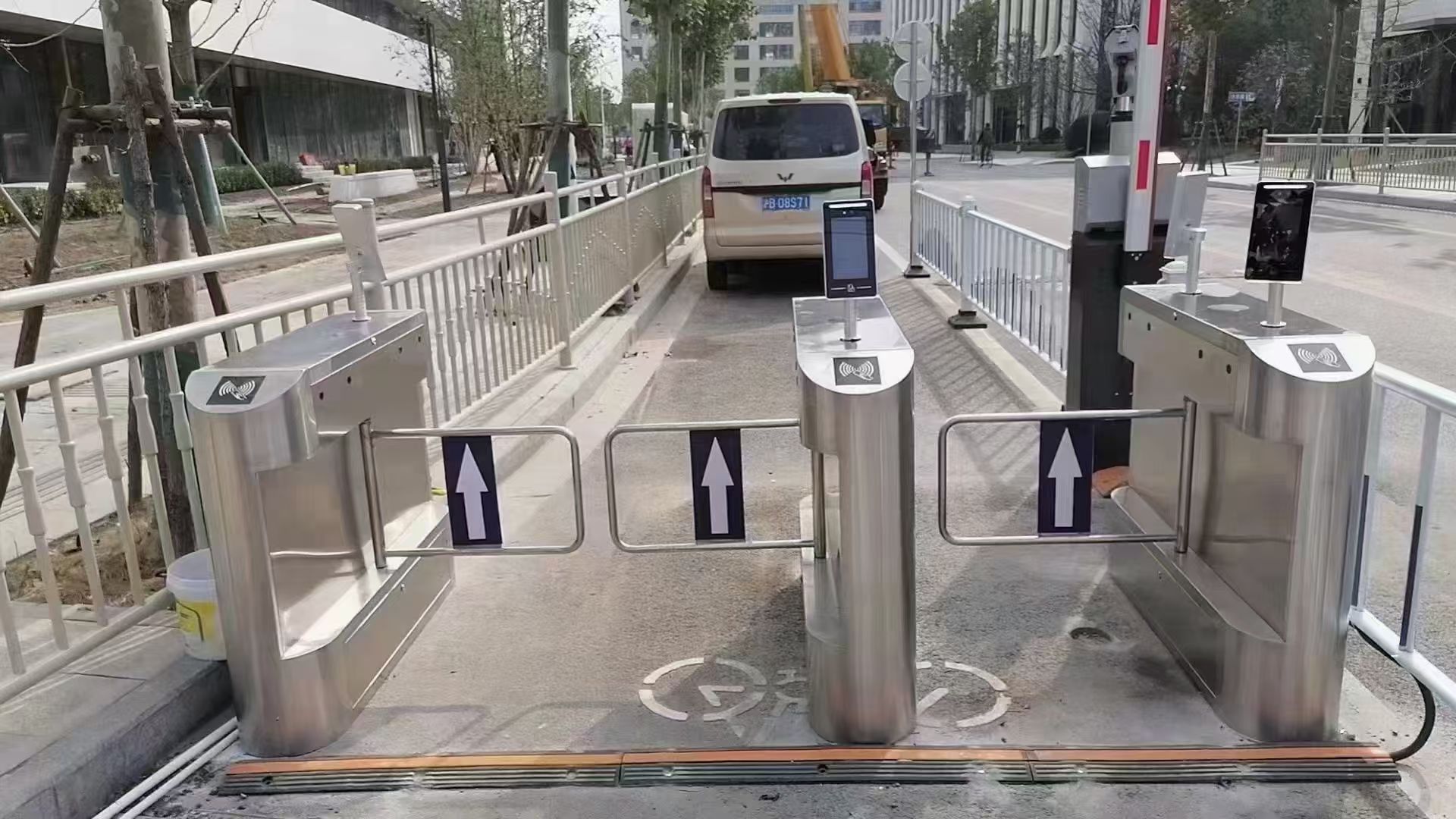

Kasus Produk (Product Cases)
 |
 |
 |
 |
Tentang Supplier (Know Your Supplier)

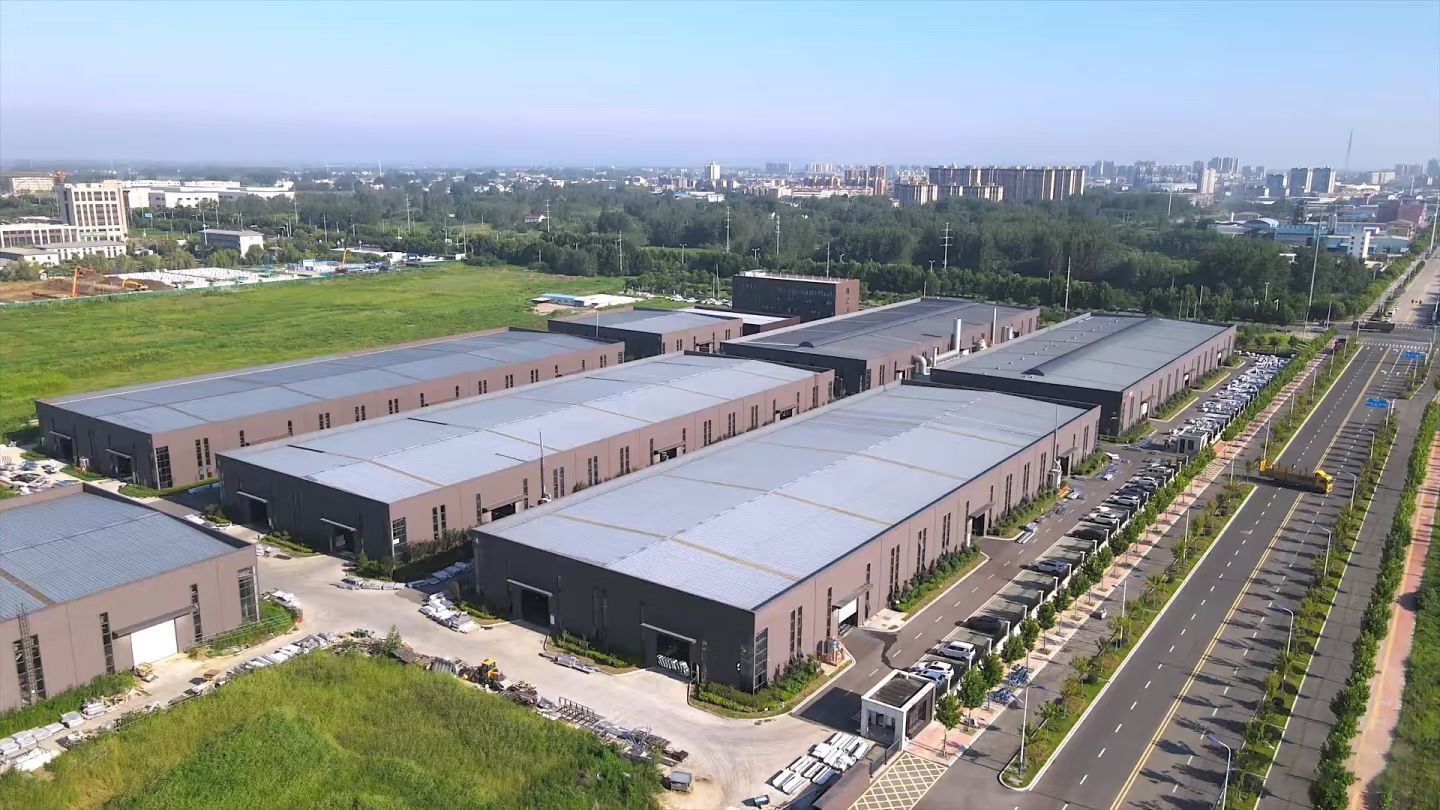

Baroxon Intelligent Technology adalah perusahaan high-tech nasional yang mengkhususkan diri dalam R&D dan manufaktur peralatan akses pejalan kaki dan portal otomatis selama lebih dari satu dekade. Dengan pangkalan produksi modern seluas 10.000 meter persegi, kami menyediakan solusi manajemen akses yang aman dan andal untuk klien global.
Mengapa Memilih Baroxon?
- Posisi Pasar: Spesialis teknologi revolving door dan boom guard (Palang Parkir).
- Pengalaman Internasional: Melayani pelanggan di lebih dari 100 negara.
- Solusi Proyek: Melayani seluruh kebutuhan proyek Anda hanya dalam satu pintu.
- Desain Simpel: Pemasangan mudah (Easy Install) dan biaya perawatan rendah.
- Layanan Cepat: Respon 3 menit, Solusi 3 jam, Penyelesaian 3 hari.
FAQ (Pertanyaan Umum)
| Q1: Produk apa saja yang bisa dibeli dari Baroxon? |
| Turnstile saluran cerdas, Pintu putar tinggi (Full height), Swing gate, Flag barrier, sistem tiket, pengenalan plat nomor cerdas (ALPR), serta integrasi absensi wajah dan sidik jari. |
| Q2: Apakah sistem mendukung Bahasa Inggris dan integrasi software? |
| Ya, hardware kami dapat dijual terpisah dan sistem mendukung antarmuka Bahasa Inggris. Kami menyediakan SDK untuk pengembangan sekunder (Secondary Development). |
| Q3: Bagaimana jika terjadi mati lampu (Emergency)? |
| Dalam kondisi darurat atau mati listrik, lengan gerbang akan otomatis terbuka (fire evacuation mode) untuk jalur evakuasi bebas hambatan. |
| Q4: Apakah produk tahan air (Waterproof) untuk outdoor? |
| Ya, semua mesin dalam seri ini memiliki fitur waterproof IP54 dan telah lulus sertifikasi CE serta ISO9001. |
Video Demonstrasi: Solusi Jalur Akses Pejalan kaki Baroxon Ba-B9 untuk Gedung dan Area Komersial
Specifications
| Tingkat Perlindungan | IP54 Standard (Weatherproof) | Waktu Buka/Tutup Palang | 0.5 s. 0.6 s. 0.8 s. 1 s. 1.2 s. 1.5 s |
| Motor Portal | Brushless Motor (Heavy Duty) | Tipe Kontrol Akses | ESD System. Face Recognition. Fingerprint. QR Code. RFID Card |
| Fungsi Turnstile | Anti-Pinch. Anti-Tailgating. Collision Avoidance | Arah Operasional | 2-Way (Bi-directional) |
| Interface Komunikasi | RS485 Connection | Material Utama | 304 Stainless Steel (Anti-Karat) |
| Nama Brand | Baroxon Indonesia | Nomor Model | Ba-B9 Series |
| Aplikasi Utama | Security Access Control Management | Power Supply | AC 220V/110V 10% 50/60MHZ |
| Ukuran Unit | 260*200*1020mm | Kecepatan Lewat | 30-40 Persons/min |
| Garansi Produk | 1 Year Limited Warranty | Lingkungan Kerja | Temperature: -20 ~ +70 |
| Model | Ba-B9 |
| Ukuran (Size) | 260*200*1020mm |
| Lebar Jalur (Channel Width) | 600-1000mm |
| Berat Bersih (Net Weight) | 45kg |
| Material Kabinet | Cover 1.2mm, Body 0.9mm 304 Brushed Plate |
| Papan Pintu (Door Plank) | 10mm Transparent Acrylic |
| Sensor Infra-red | Mirror Metal Circular 6 Pairs |
| Motor Listrik | Fengdun DC Brushless 90K 30W |
| Power Supply | 24V 150W |
|
|
|
|
| Q1: Produk apa saja yang bisa dibeli dari Baroxon? |
| Turnstile saluran cerdas, Pintu putar tinggi (Full height), Swing gate, Flag barrier, sistem tiket, pengenalan plat nomor cerdas (ALPR), serta integrasi absensi wajah dan sidik jari. |
| Q2: Apakah sistem mendukung Bahasa Inggris dan integrasi software? |
| Ya, hardware kami dapat dijual terpisah dan sistem mendukung antarmuka Bahasa Inggris. Kami menyediakan SDK untuk pengembangan sekunder (Secondary Development). |
| Q3: Bagaimana jika terjadi mati lampu (Emergency)? |
| Dalam kondisi darurat atau mati listrik, lengan gerbang akan otomatis terbuka (fire evacuation mode) untuk jalur evakuasi bebas hambatan. |
| Q4: Apakah produk tahan air (Waterproof) untuk outdoor? |
| Ya, semua mesin dalam seri ini memiliki fitur waterproof IP54 dan telah lulus sertifikasi CE serta ISO9001. |
Frequently Asked Questions
Q: What warranty is included with the product?
A: Standard warranty is 12 months for the controller and motor, counted from delivery. Extended warranty and a spare-parts package are available on request.
Q: What is the minimum order quantity (MOQ)?
A: We accept one-piece orders, so you can test a single unit on site before scaling up to a project quantity.
Q: What is the lead time for delivery?
A: Standard lead time is 10-15 days after order confirmation, depending on model and quantity. Sample orders ship from stock.
Q: Do you deliver to European Union countries?
A: Yes. We ship to every EU country by sea or air freight, with CE documentation, wiring diagrams and customs paperwork prepared before dispatch.
Q: Which certifications and quality standards apply?
A: Production runs under ISO 9001, ISO 14001 and ISO 45001 management systems. Electrical components are CE marked, housings use PPG and AkzoNobel fluorocarbon coatings, and third-party SGS inspection is available on request.
Q: Can the product be customised for my project?
A: Yes. Boom length, housing colour, voltage, controller logic, branding and packaging can all be adapted as OEM/ODM, based on a drawing or a sample.
Q: What payment terms do you accept?
A: We normally work with T/T: 30 percent deposit on order confirmation and 70 percent balance before shipment. Other terms can be discussed for repeat project customers.
Q: What technical support and spare parts do you provide?
A: Every order includes installation drawings, a wiring diagram and remote commissioning support during your working hours. Consumables and spare parts are stocked for at least five years after delivery.
Baroxon® EU | Smart Boom Barriers & Access Control
Advanced Security Access Control and Intelligent Parking Solutions.
Company Strength

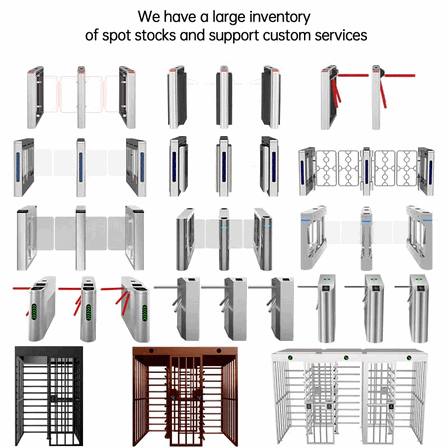

Adequate Inventory
