Anti-Collision Steel Parking Lock for Business Districts and Industrial Factory Lots
Classification :
PRODUCT DETAILS
AI Summary
Baroxon smart parking locks protect private bays with app control, 5 t anti-collision resistance and IP67 bodies.
Anti-Collision Steel Parking Lock for Business Districts and Industrial Factory Lots Bluetooth and Wi-Fi models rise in 5 s and run 6-12 months per charge in commercial and residential lots.
Category: Parking Locks
Measured Data & Real-World Performance
Every figure below is measured on standard production units, stating the test condition and the industry benchmark. Each row can be read independently.
Test condition — Load capacity: measured up to 5 t anti-collision. Benchmark: common: 1-2 t.
Test condition — Rise/fall time: measured 5 s. Benchmark: typical: 8 s.
Test condition — Battery life: measured 6-12 months per charge. Benchmark: typical: 3 months.
Test condition — Protection rating: measured IP67 waterproof. Benchmark: common: IP54.
Key Attributes - Professional Parking Management System
| Type | Professional Parking Management System Indonesia | Place of Origin | Guangdong, China (Export Standard) |
| Brand Name | Baroxon | Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (After-sales Support) | Selling Units | Single item / Project Bulk |
Product Description - Intelligent Parking Remote Control Lock
Baroxon Smart Parking Remote Control Lock Specification:

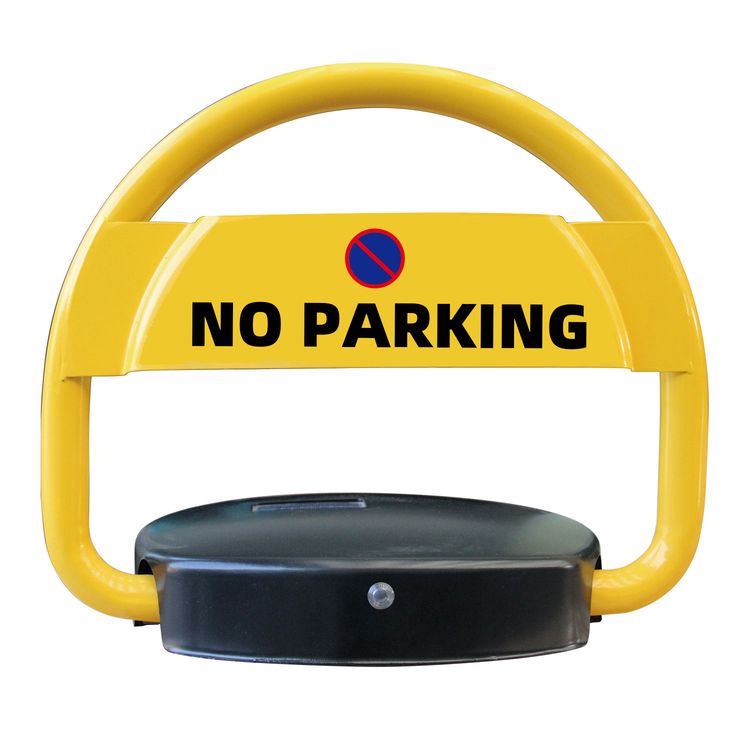

The Baroxon intelligent parking remote control lock is a premium device integrating photoelectric sensing positioning and a heavy-duty anti-collision structure. Designed with a circular shape for modern aesthetics, it offers safety, novel structure, and powerful functionality. This system is the ideal helper for "Pengelola Gedung" (Building Managers) to prevent unauthorized parking in high-end residential areas, shopping centers (Mall), hotels, office buildings, and airports across Jakarta, Surabaya, and Bali.
Premium Material:
- Lock base: High-strength Cold rolled steel plate
- 180-degree anti-collision alarm system
Key Features for Indonesia Projects:
* Smart Intelligence: Anti-collision technology with 20 Meters remote control distance. Automatic alarm triggers if the arm is obstructed.
* Low Maintenance: Flexible options for Accumulator Cell or Dry Cell. Long-lasting performance suitable for tropical climates.
* Heavy Duty Structure: IP67 waterproof rating. The rounded corner design and sturdy thick steel ensure it will not deform. It can endure 500kg pressure without damage in declining condition (Tahan Tekanan Kendaraan).
* Safety Protection: Automatic power cut-off if external force blocks the lifting process to protect the motor.
* Power Indicator: Flashing light or buzzer alarm reminds users when battery needs charging.
* Auto-Reset Function: Rocker automatically resets after 3-5 seconds once external force is removed.
* Anti-theft: Ground fixings are protected inside a locked outer cover, accessible only by the user’s key.
* Multi-Lock Control: One remote can be matched to control multiple Baroxon parking units simultaneously for efficient area management.

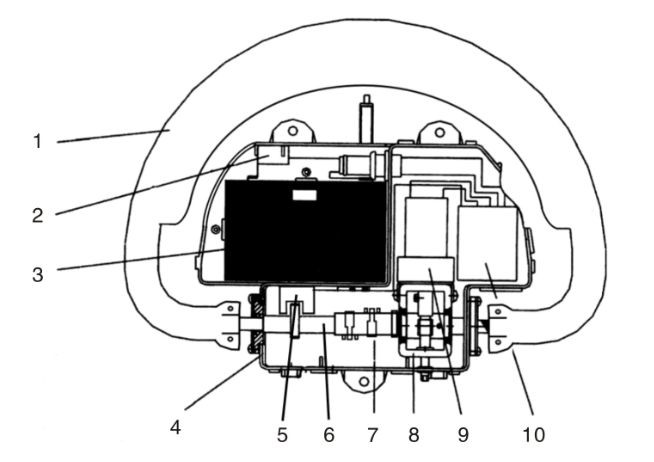

STRUCTURE SCHEMATIC DIAGRAM
1. Rocker Assembly | 2. Alarm | 3. Battery | 4. Box Body Assembly
5. Photoelectric Sensor | 6. Drive Shaft | 7. Anti-collision Device
8. Gearbox | 9. Electrical Motor | 10. Control Board
Note: Frequently clean dust and debris to maintain optimal "Keamanan Parkir" performance.
Technical Specifications - Sistem Parkir Baroxon
| Accessories | Remote control*2, Key*2, Solar Cell*1, Expansion screw*3, Manual*1 | ||
| Open Method | Remote control / Manual power off | Motor Model | KR-540 DC reduction motor |
| Material | Cold rolled steel plate | Dimension | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3(Connection)mm | Shell Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm | Gross Weight | 8KGS |
| Net Weight | 7KGS | Package Size | 480*480*90(mm) |
| Output Power | 10W | Running Time | ≤5s (Fast Response) |
| Voltage | 4V | Lifting Height | 400mm |
| Working Current | ≤0.85A | Control Distance | ≥15m |
| Project Advantages | 1. Compression resistance: Withstands 3-5 ton vehicle runover. 2. Waterproof: IP67 rated (Tahan Air). |
||
Special Project Explanation

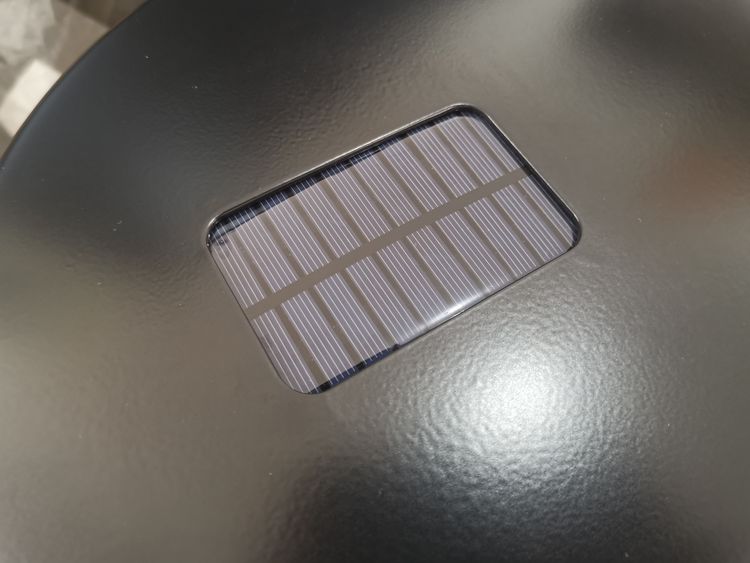

1. Solar Support: Customized solar cover with built-in circuit board for sustainable "Energi Surya" power.
2. Enclosed Base: Internal aluminum base is fully enclosed, waterproof, and more corrosion-resistant than ordinary steel plates, preventing rust in humid climates.
3. Dual Mode: Supports Accumulator cell (upgradeable lithium battery) and solar dual-mode power supply for 24/7 operation.
Video: Installation and Durability Test of Baroxon Ba-CL-04 Remote Parking Lock for Jakarta Smart Buildings
F.A.Q - Baroxon Indonesia Customer Support
Q: Is the Ba-CL-04 suitable for outdoor parking lots in rainy areas?
A: Absolutely. It features an IP67 waterproof rating (Tahan Air) and an aluminum enclosed base to prevent rust and corrosion.
Q: How long does the battery last?
A: Dry cells can last over 1 year. The accumulator cell (rechargeable) combined with our Solar Panel option provides almost unlimited power for high-traffic "Lahan Parkir".
Q: Can we order with our own logo for a large construction project?
A: Yes, we provide OEM services for "Kontraktor" and "Pengelola Gedung" in Indonesia. Customized solar covers are also available.
Q: What happens if a car hits the locker arm?
A: The 180-degree anti-collision alarm will trigger immediately, and the rocker arm will auto-reset after 3-5 seconds to prevent mechanical damage.
Detailed Technical Specifications
| Type | Professional Parking Management System Indonesia |
| Place of Origin | Guangdong, China (Export Standard) |
| Brand Name | Baroxon |
| Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (After-sales Support) |
| Selling Units | Single item / Project Bulk |
| Warranty | 1 Year |
| After-sales Service | Lifetime Technical Support |
Product Features
1. Remote & Smartphone Control: raise or lower the parking lock quickly via remote control or Bluetooth/Wi-Fi app.
2. Anti-Collision Durable Body: reinforced steel and T-shape design withstand daily vehicle contact.
3. Weatherproof Construction: IP67-rated sealing protects the mechanism in outdoor parking spaces.
4. Manual & Automatic Options: folding, T-shape, induction, and automated variants fit different site requirements.
5. Energy Efficient: low-power DC or solar-compatible operation keeps running costs minimal.
Company & Exhibition
Baroxon is a premium manufacturer of boom barriers, radar sensors, parking locks, and gate openers. Every product is produced under ISO 9001 quality management, tested for reliability, and shipped with global technical support. Our solutions are used in commercial parking, residential communities, industrial parks, and public infrastructure across Europe and worldwide.
Packaging and Delivery
| Selling Units | Single item | Package Size | Depends on model |
| Gross Weight | Depends on model | Lead Time | 5-15 working days |
Specifications
| Type | Professional Parking Management System Indonesia | Place of Origin | Guangdong, China (Export Standard) |
| Brand Name | Baroxon | Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (After-sales Support) | Selling Units | Single item / Project Bulk |
| Accessories | Remote control*2, Key*2, Solar Cell*1, Expansion screw*3, Manual*1 | ||
| Open Method | Remote control / Manual power off | Motor Model | KR-540 DC reduction motor |
| Material | Cold rolled steel plate | Dimension | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3(Connection)mm | Shell Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm | Gross Weight | 8KGS |
| Net Weight | 7KGS | Package Size | 480*480*90(mm) |
| Output Power | 10W | Running Time | ≤5s (Fast Response) |
| Voltage | 4V | Lifting Height | 400mm |
| Working Current | ≤0.85A | Control Distance | ≥15m |
| Project Advantages | 1. Compression resistance: Withstands 3-5 ton vehicle runover. 2. Waterproof: IP67 rated (Tahan Air). |
||
| Type | Professional Parking Management System Indonesia |
| Place of Origin | Guangdong, China (Export Standard) |
| Brand Name | Baroxon |
| Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (After-sales Support) |
| Selling Units | Single item / Project Bulk |
| Warranty | 1 Year |
| After-sales Service | Lifetime Technical Support |
| Selling Units | Single item | Package Size | Depends on model |
| Gross Weight | Depends on model | Lead Time | 5-15 working days |
Frequently Asked Questions
Q: What warranty is included with the product?
A: Standard warranty is 12 months for the controller and motor, counted from delivery. Extended warranty and a spare-parts package are available on request.
Q: What is the minimum order quantity (MOQ)?
A: We accept one-piece orders, so you can test a single unit on site before scaling up to a project quantity.
Q: What is the lead time for delivery?
A: Standard lead time is 10-15 days after order confirmation, depending on model and quantity. Sample orders ship from stock.
Q: Do you deliver to European Union countries?
A: Yes. We ship to every EU country by sea or air freight, with CE documentation, wiring diagrams and customs paperwork prepared before dispatch.
Q: Which certifications and quality standards apply?
A: Production runs under ISO 9001, ISO 14001 and ISO 45001 management systems. Electrical components are CE marked, housings use PPG and AkzoNobel fluorocarbon coatings, and third-party SGS inspection is available on request.
Q: Can the product be customised for my project?
A: Yes. Boom length, housing colour, voltage, controller logic, branding and packaging can all be adapted as OEM/ODM, based on a drawing or a sample.
Q: What payment terms do you accept?
A: We normally work with T/T: 30 percent deposit on order confirmation and 70 percent balance before shipment. Other terms can be discussed for repeat project customers.
Q: What technical support and spare parts do you provide?
A: Every order includes installation drawings, a wiring diagram and remote commissioning support during your working hours. Consumables and spare parts are stocked for at least five years after delivery.
