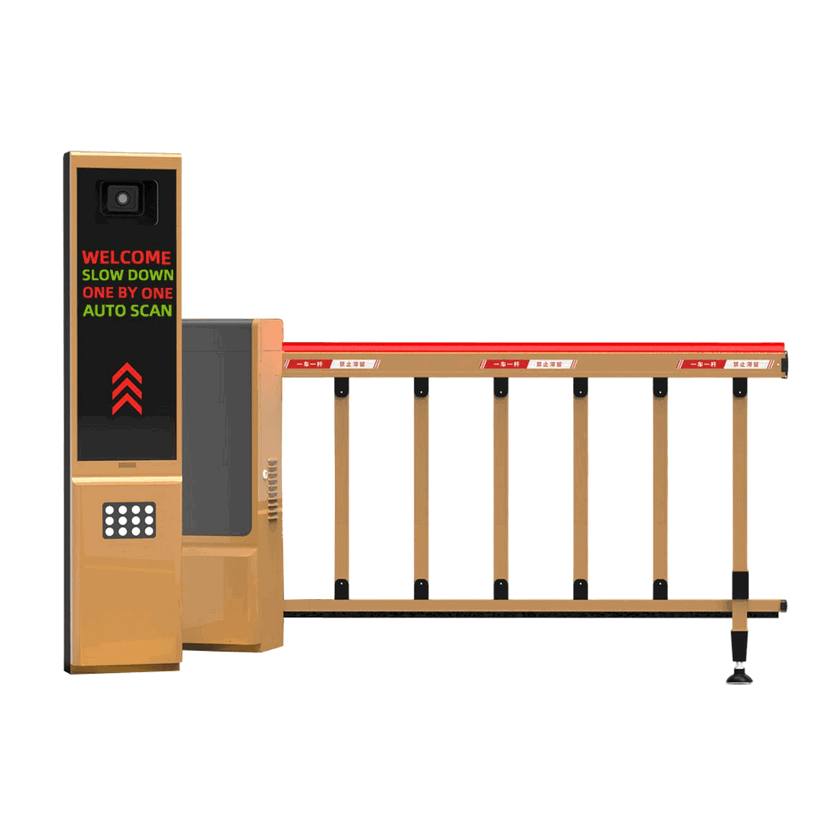

All-in-One LPR Access Control System with Integrated High-Speed Traffic Barrier
Classification :
PRODUCT DETAILS
AI Summary
Baroxon manufactures automatic boom barriers built for 24/7 toll, parking and industrial operation with a 100% duty cycle.
All-in-One LPR Access Control System with Integrated High-Speed Traffic Barrier DC brushless motors, aluminium booms from 1 to 6 m and IP65 housings deliver opening times of 0.6-3 s and up to 4,000 vehicles per hour.
Category: Boom Barriers
Measured Data & Real-World Performance
Every figure below is measured on standard production units, stating the test condition and the industry benchmark. Each row can be read independently.
Test condition — Duty cycle: measured 100% continuous; MCBF 5,000,000 cycles. Benchmark: industry standard: 3,000,000 cycles.
Test condition — Opening time (6 m boom): measured 0.6-3 s, speed-adjustable. Benchmark: common fixed units: 1.5-6 s.
Test condition — Protection rating: measured IP65 weatherproof housing. Benchmark: many competitors: IP44.
Test condition — Operating temperature: measured -30 °C to +75 °C. Benchmark: typical: -20 °C to +60 °C.
Key Technical Specifications - Baroxon Automated Traffic Systems
| Type | Card, Code, Key, Smartphone, UHF | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single unit, secure transit-ready packaging |
Baroxon provides a user-friendly intelligent access control system featuring an advanced mainboard for seamless gate operation and credential management.
Our modular automatic boom barrier gate features a streamlined design for simplified installation and minimal field maintenance.
Stable performance is guaranteed by our DC brushless motor and high-precision frequency conversion technology, ideal for high-traffic entry points.
Enhanced safety is prioritized with anti-collision logic, auto-rebound upon obstruction, and seamless integration with our advanced LPR license plate recognition software.
Product Demonstration & Testing Videos
Product Structural Images
About Baroxon - Professional Traffic Barrier Gate Manufacturer
As a leading supplier in the perimeter security and access control industry, Baroxon provides comprehensive engineering and manufacturing solutions for vehicle access control, corporate entry security, and intelligent parking lot management.
- Market Focus: Specializing in heavy-duty straight-arm gate operators, articulated fence barriers, and LPR/ANPR system integration.
- Global Reach: Trusted by facility managers and contractors across the US, UK, Canada, and Australia.
- Project Support: End-to-end consulting, from site assessments and design to installation and hardware training.
- Design Efficiency: Modular components designed for rapid installation and long-term, low-maintenance field operation.
- Innovation: Over 100 patents in DC brushless control technology and barrier safety sensor systems.
- Expert Team: R&D leadership with 20+ years of industrial access control manufacturing experience.
- Service Guarantee: 1-minute initial response, 2-hour technical processing, and 2-day resolution cycle.
Customization & Factory Facilities
Frequently Asked Questions (FAQs)
Q1: What is the cycle speed of the barrier gates?
A: Standard operation ranges from 0.8s to 6s, highly configurable for diverse traffic flow requirements.
Q2: Can your systems handle off-grid power requirements?
A: Yes, we provide low-voltage DC solutions specifically engineered for remote or solar-powered setups.
Q3: Do you provide custom boom lengths?
A: Our standard range is 3m to 6m, but we offer full custom manufacturing for unique site dimensions.
Q4: How does the system integrate with existing access hardware?
A: Our mainboard is designed for universal compatibility with LPR, long-range UHF, RFID, and ticket-issuing kiosks.
Q5: Are these units suitable for harsh outdoor conditions?
A: Yes, all units are IP55 rated and feature UV-resistant industrial powder coating for maximum climate durability.
Q6: What safety standards are integrated?
A: Standard safety includes anti-crush sensors, auto-reverse logic, loop detector inputs, and manual clutch override for power-loss scenarios.
Q7: What is the expected service life of the motor?
A: Engineered for 5 million+ cycles, designed for years of reliable performance with minimal maintenance.
Factory Direct Distribution
For wholesale pricing, tenders, or custom projects, please contact Baroxon: Email: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
Hot Tags (US/UK Commercial Security Keywords)
Automatic Parking Gate | Boom Barrier Gate | Parking Revenue Control | Industrial Access Control | Electric Security Boom | Commercial Property Entrance | Vehicle Loop Detection | High-Security Barrier | Traffic Management Hardware | Perimeter Defense Solutions | Gated Community Gate | Automated Traffic Control | Toll Plaza Infrastructure | Smart Parking Manufacturer | 24V Brushless Gate Operator | Articulated Folding Arm Gate | Heavy Duty Security Gate | Wholesale Gate Openers | Roadway Safety Barriers | Entrance Automation Systems | Car Park Access Control | Secure Driveway Barriers | Intelligent Security Gates | Managed Parking Solutions | Vehicle Access Management | Perimeter Access Control
Specifications
| Type | Card, Code, Key, Smartphone, UHF | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single unit, secure transit-ready packaging |
Frequently Asked Questions
Q: What warranty is included with the product?
A: Standard warranty is 12 months for the controller and motor, counted from delivery. Extended warranty and a spare-parts package are available on request.
Q: What is the minimum order quantity (MOQ)?
A: We accept one-piece orders, so you can test a single unit on site before scaling up to a project quantity.
Q: What is the lead time for delivery?
A: Standard lead time is 10-15 days after order confirmation, depending on model and quantity. Sample orders ship from stock.
Q: Do you deliver to European Union countries?
A: Yes. We ship to every EU country by sea or air freight, with CE documentation, wiring diagrams and customs paperwork prepared before dispatch.
Q: Which certifications and quality standards apply?
A: Production runs under ISO 9001, ISO 14001 and ISO 45001 management systems. Electrical components are CE marked, housings use PPG and AkzoNobel fluorocarbon coatings, and third-party SGS inspection is available on request.
Q: Can the product be customised for my project?
A: Yes. Boom length, housing colour, voltage, controller logic, branding and packaging can all be adapted as OEM/ODM, based on a drawing or a sample.
Q: What payment terms do you accept?
A: We normally work with T/T: 30 percent deposit on order confirmation and 70 percent balance before shipment. Other terms can be discussed for repeat project customers.
Q: What technical support and spare parts do you provide?
A: Every order includes installation drawings, a wiring diagram and remote commissioning support during your working hours. Consumables and spare parts are stocked for at least five years after delivery.
